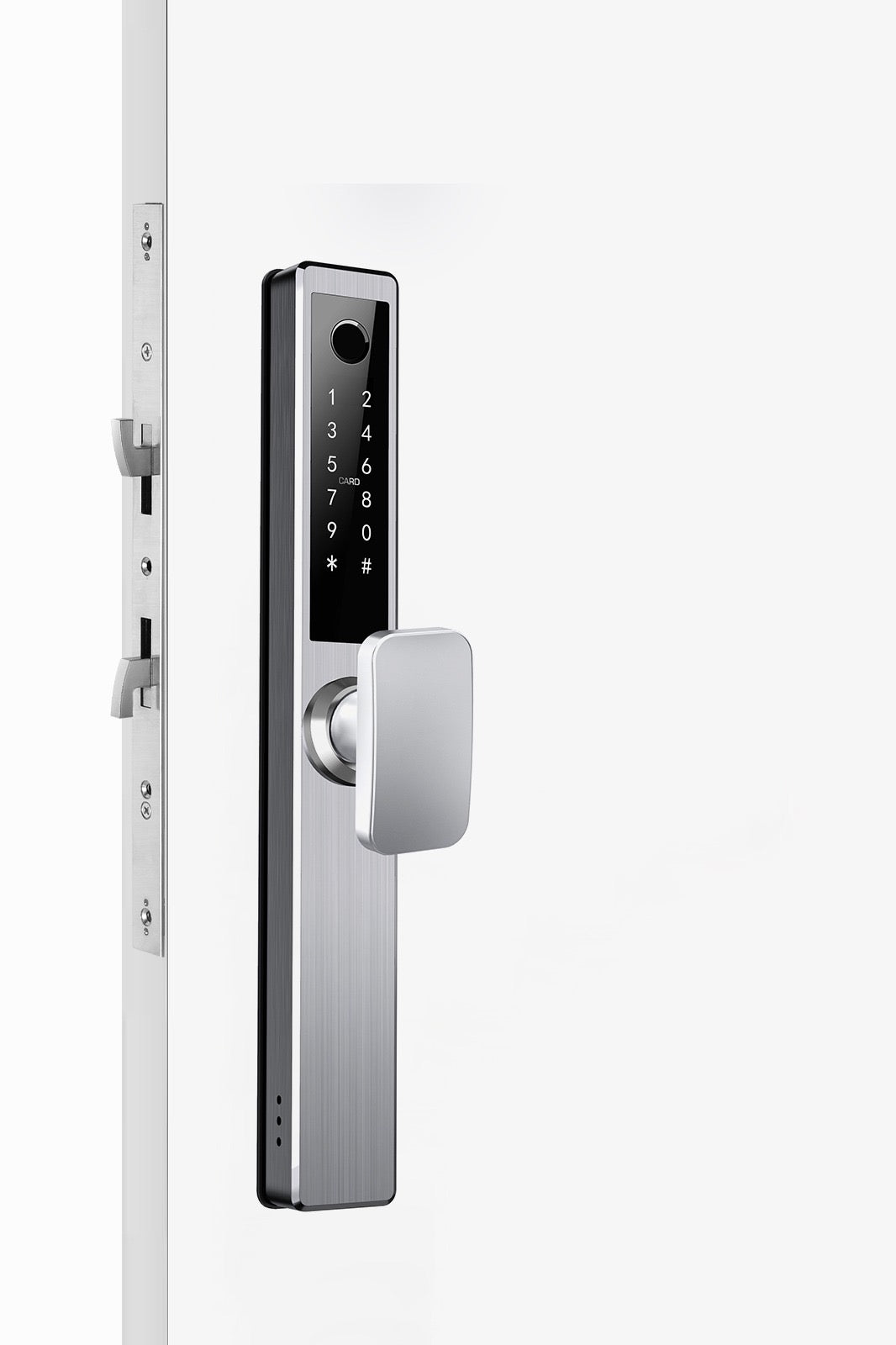

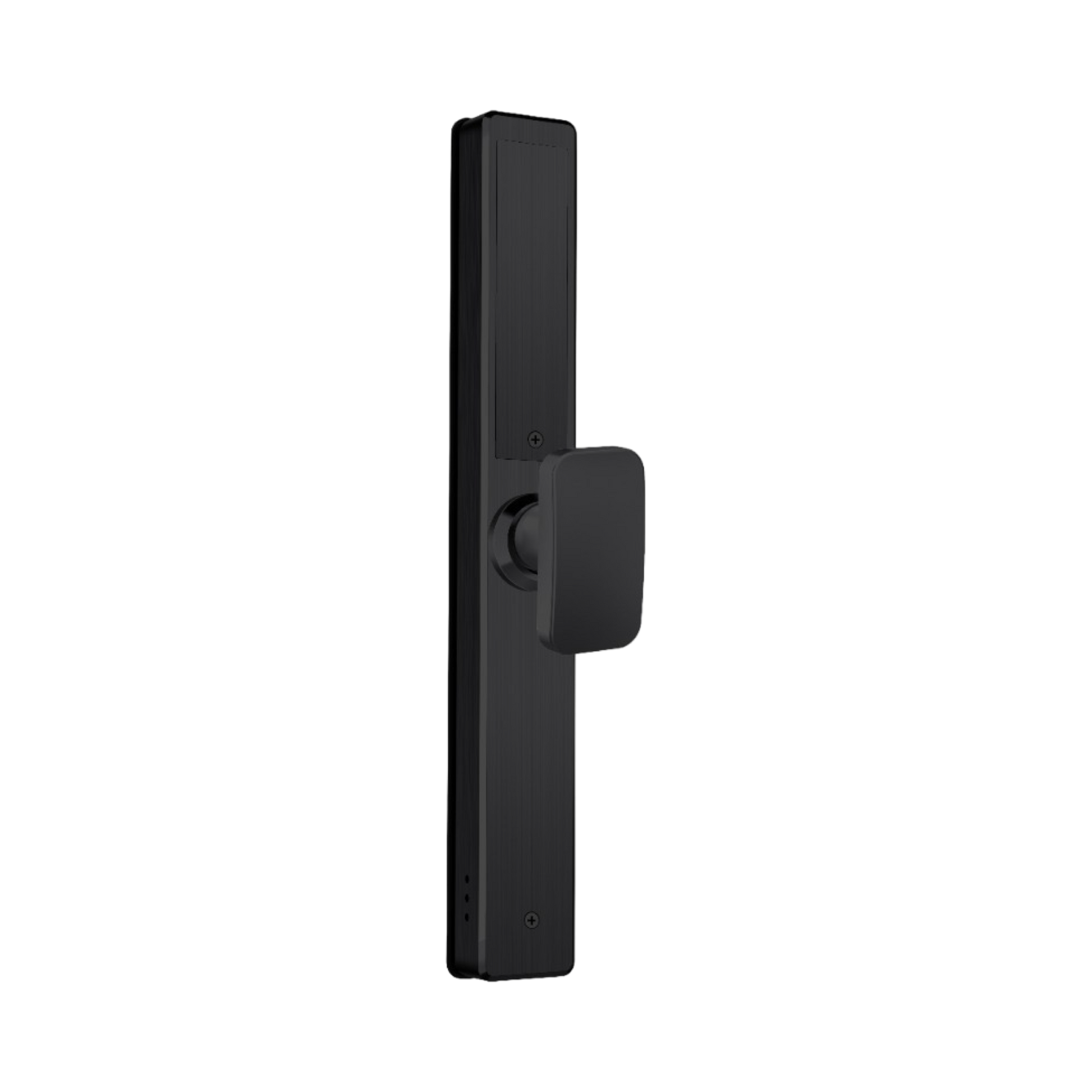

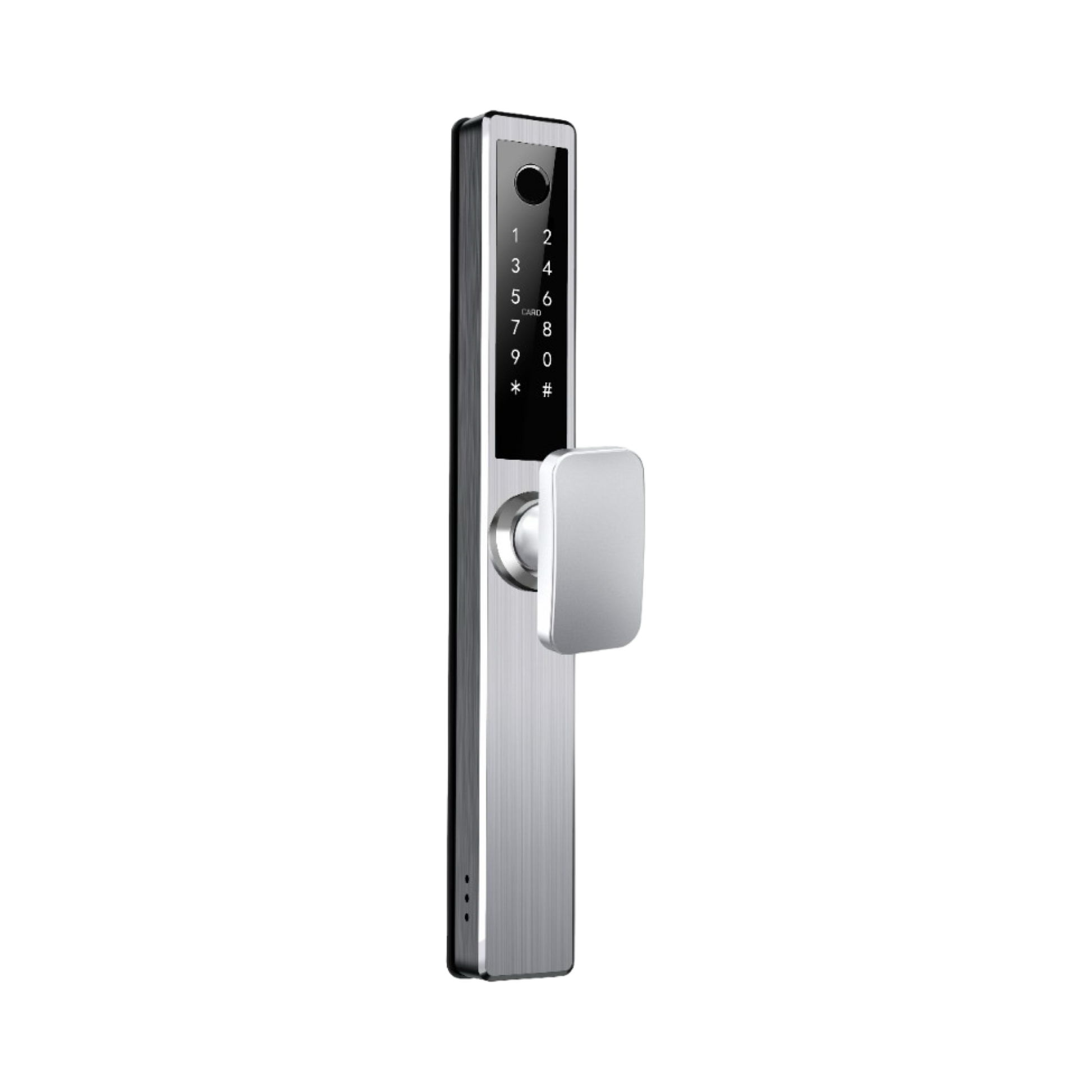

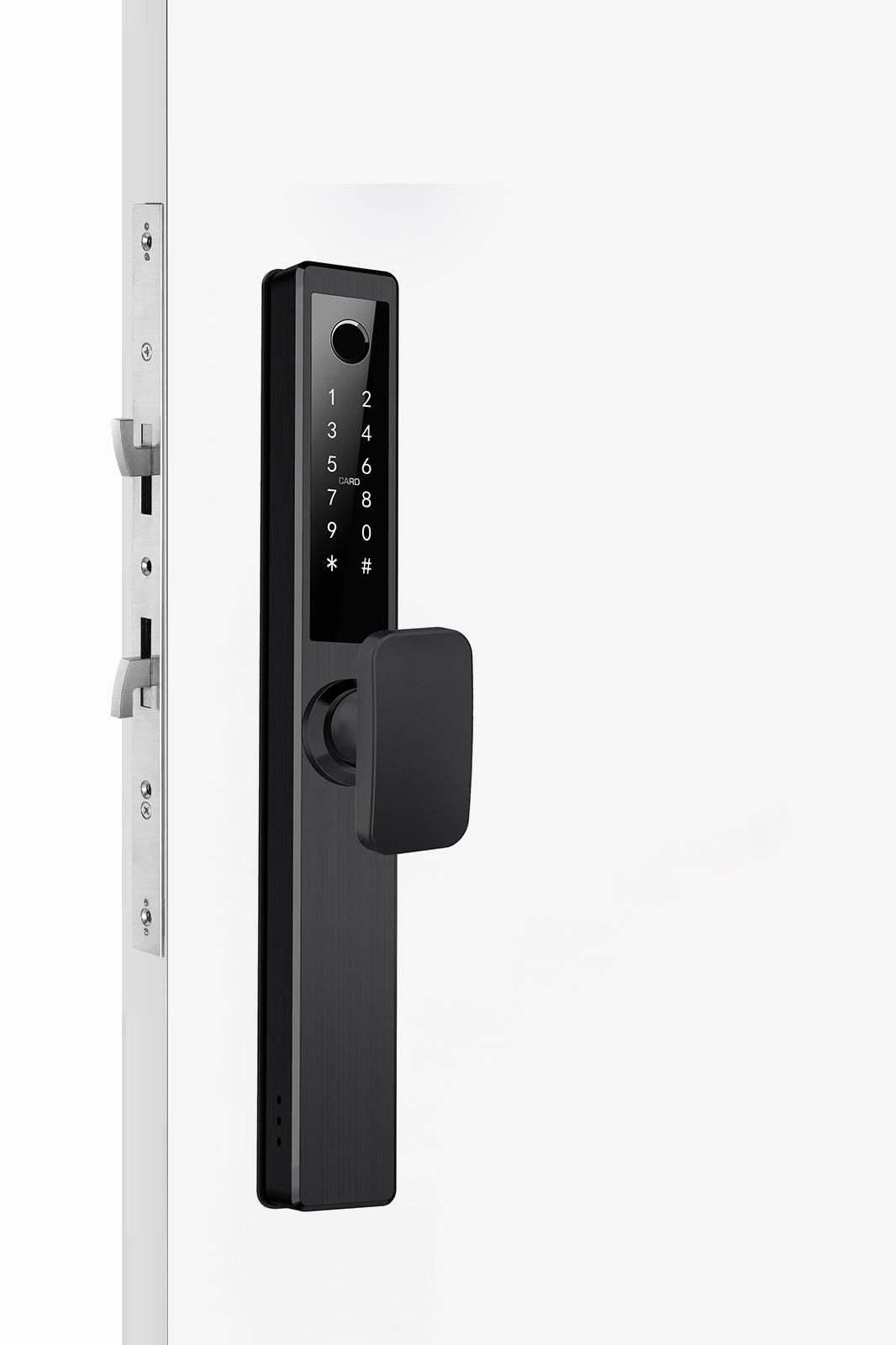

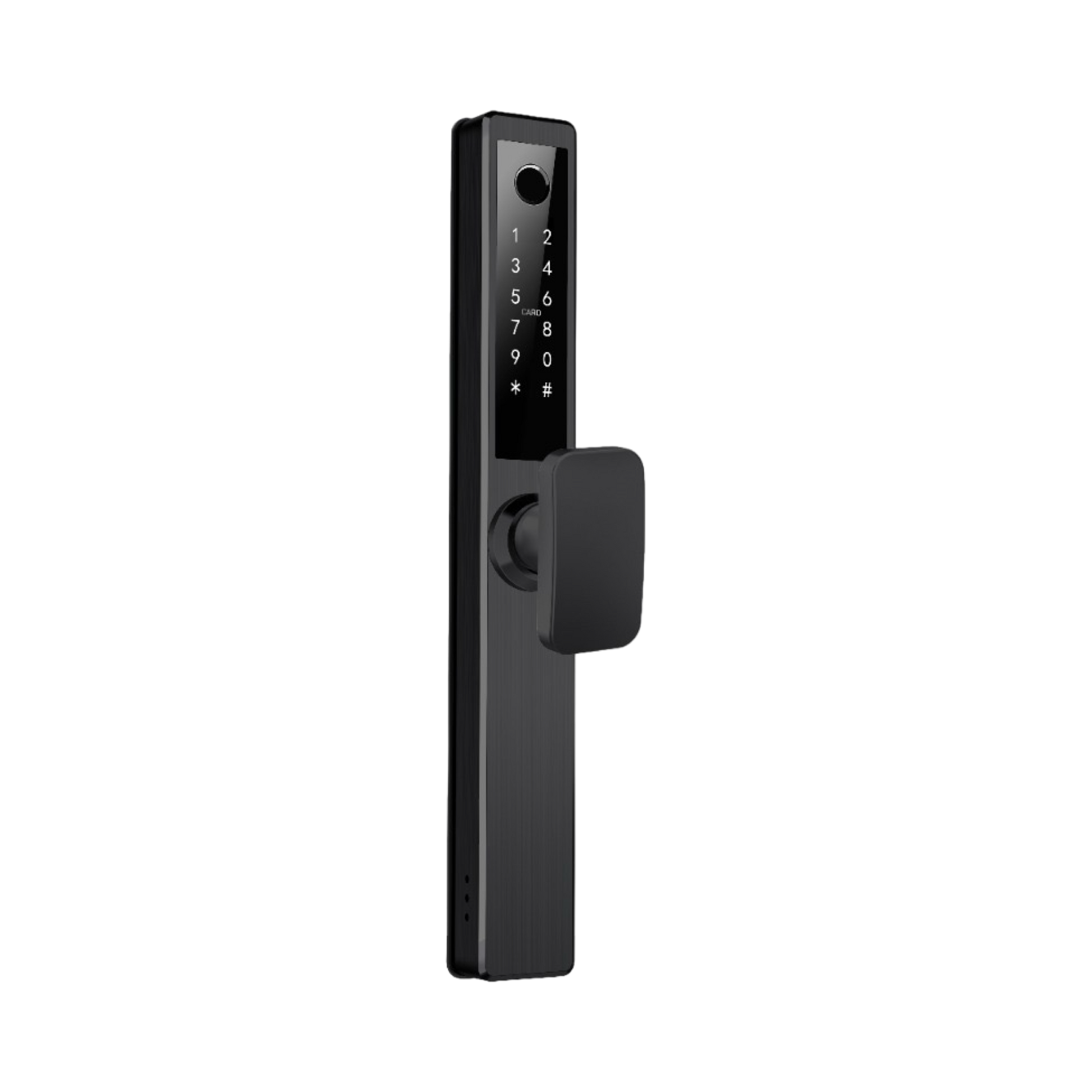

Linea Sliding Door Smart Lock

Purpose-Built for Sliding Doors
Equipped with a durable hook-style mortice lock for secure engagement with the strike plate — ideal for aluminium or timber sliding doors.
Compatible with most Australian standard sliding door cutouts (retrofit-friendly)

Secure & Reliable Access – 6 Ways to Unlock
Unlock with ease using your preferred method:
• Fingerprint
• PIN Code
• RFID Card
• Smartphone via Bluetooth
• Remote Unlock via Wi-Fi Gateway
• Traditional Key Backup

Perfect for families, staff, Airbnb hosts, and property managers seeking flexible access.


TTLock App Integration
• Instantly create and share eKeys or PINs
• Set time-limited or scheduled access for guests, cleaners, or staff
• View real-time access logs (who, when, how) for accountability
• Remotely lock/unlock with optional Wi-Fi Gateway
• Customize auto-lock settings, access alerts, and lock configurations
• Manage multiple properties or locks with a single account

Advanced Security & Encryption
Stay protected with cutting-edge features:
• AES128 Encrypted Bluetooth for secure communication
• Auto Lockout After Failed Attempts – adds peace of mind for rentals, tradies, and remote properties
• Tamper Alarm – alerts you if the lock is forcibly removed

Customizable Multi-User Management
Tailor access for any scenario:
• Store up to 200 fingerprints, 150 PIN codes, and 200 RFID cards
• Assign custom names and access levels for users
• Ideal for households, offices, and short-term rentals

Built Tough for Australian Conditions
Designed to withstand the elements:
• IP65 Weatherproof – dust and rain resistant, perfect for gates, fences, and outdoor use
• Operates in temperatures from -25°C to 60°C
• Strong Aluminium Alloy Build – resists impact and corrosion for durability

Power-Efficient with Backup Options
Stay powered and ready:
• Runs on 4× AAA batteries (up to 12 months or 10,000 operations)
• Low battery warning via app and lock
• Micro-USB Emergency Power Input for instant backup

Smart Home Integration
Seamlessly connect with your smart home:
• Fully compatible with Alexa and Google Home
• Hands-free control – say “Alexa, lock the front door” or “Hey Google, unlock the door”
• Integrates effortlessly with other devices for a streamlined, automated living experience

Model Type:

Linear Sliding Door Smart Lock

Unlock Methods:

• Fingerprint (FPC sensor)
• PIN Code
• RFID Card
• Bluetooth (via TTLock app)
• Wi-Fi (with optional G2 Gateway)
• Mechanical Key

Materials:

• 304 Stainless Steel body
• Tempered glass touchpad

Fingerprint Sensor:

• Type: FPC Semiconductor
• Capacity: Up to 100 fingerprints
• Recognition Speed: ≤ 0.5 seconds
• Angle: 360° touch detection
• False Rejection Rate (FRR): <1%
• False Acceptance Rate (FAR): <0.001%

RFID Card:

• Capacity: Up to 200 cards
• Type: MIFARE (13.56 MHz)

PIN Code:

• Capacity: Up to 150 codes
• Supports 6–9 digit codes
• Anti-peep functionality supported

App Compatibility:

App: TTLock

• Platform: iOS & Android
• Functions: Add/delete users, generate time-limited codes, view unlock history, manage access remotely (with Wi-Fi bridge)

Mechanical Key Override:

• Included: 2 physical keys
• Hidden override cylinder for emergency use

Power Supply:

• 4 × AA Alkaline Batteries
• Battery Life: Up to 12 months (approx. 8,000 uses)
• Low Battery Warning: Triggered below 4.8V
• Emergency Power: Micro-USB port (5V)

Lock Body Type (Mortise):

Euro-style mortise

• Suitable for single or multipoint locking systems

Weather Rating:

• IP66 – Dust-tight and protected against powerful water jets
• Suitable for sheltered exterior use

Door Compatibility:

• Door Thickness: 30mm – 80mm
• Handle Orientation: Reversible for left or right-hand doors
• Backset: 60mm (standard mortise body)

Operating Temperature:

• -20°C to 70°C

Operating Humidity:

• 20% – 90% RH (non-condensing)

• Finish/Colour Options:
• Black
• Silver

Languages Supported in Voice/Display (if applicable):

• English, Chinese, Spanish, Portuguese, Russian, French, Malay, etc.
