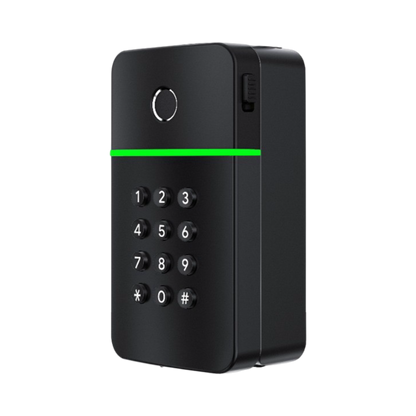

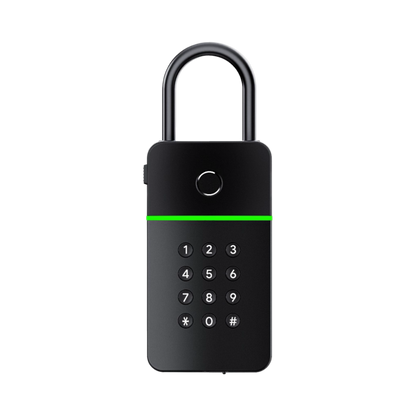

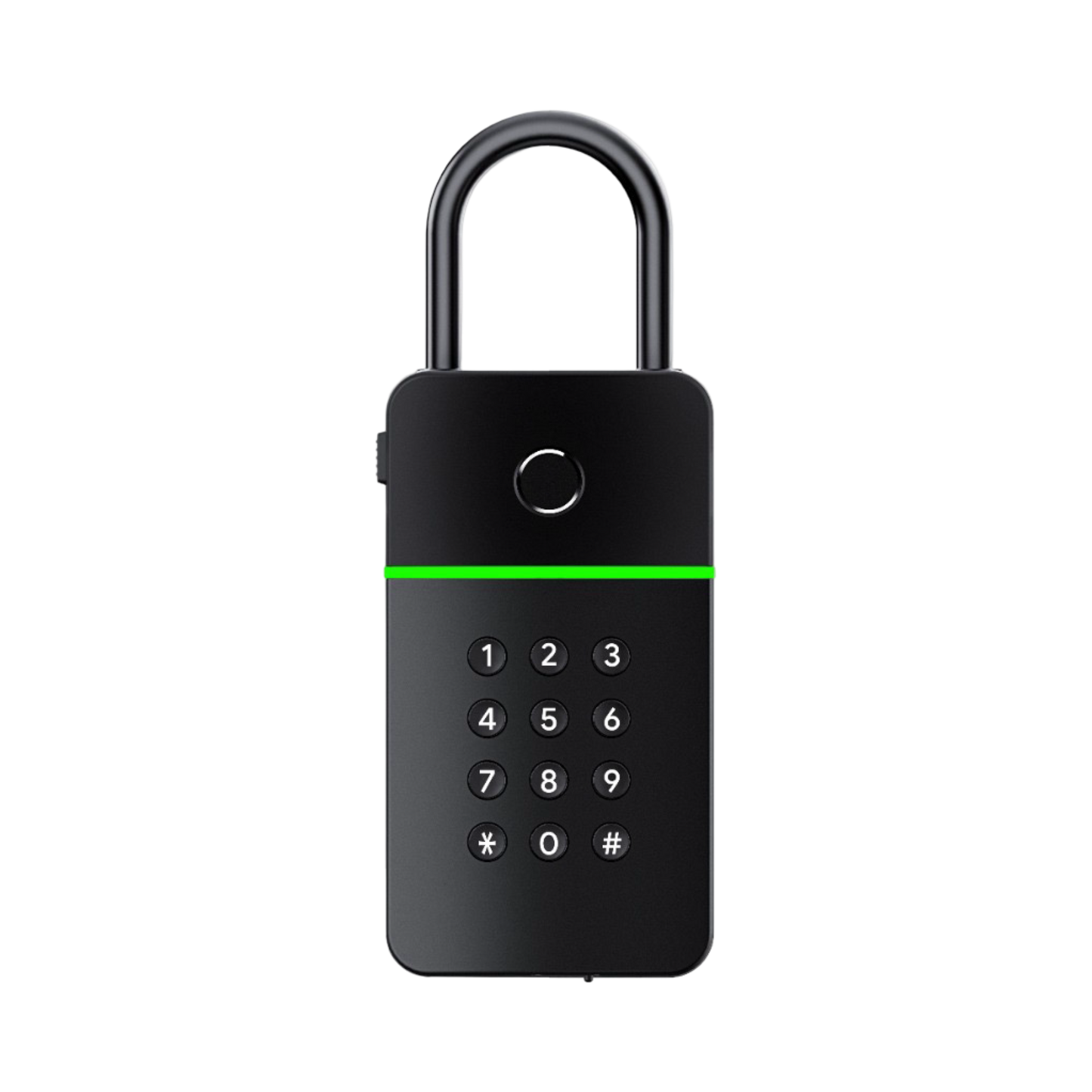

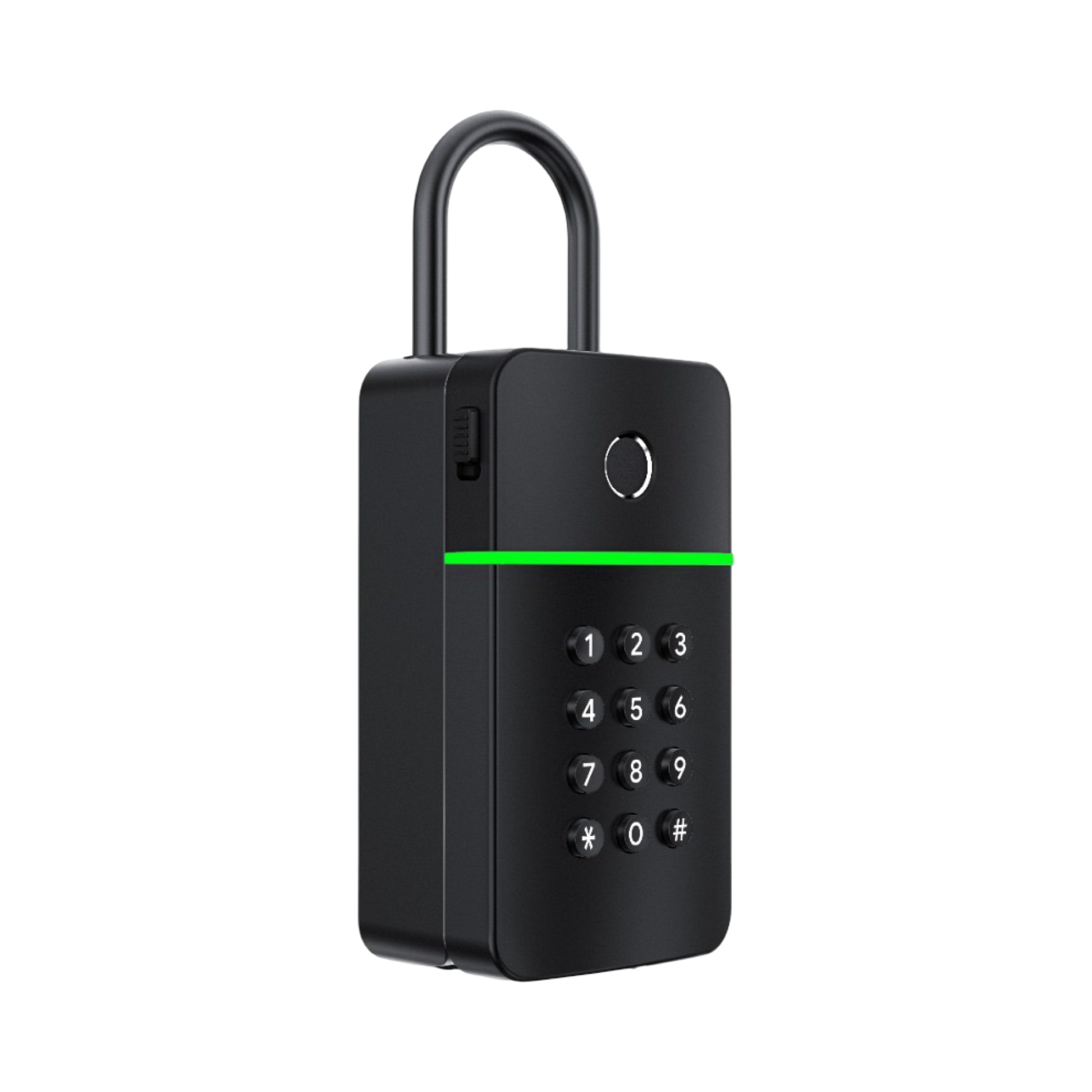

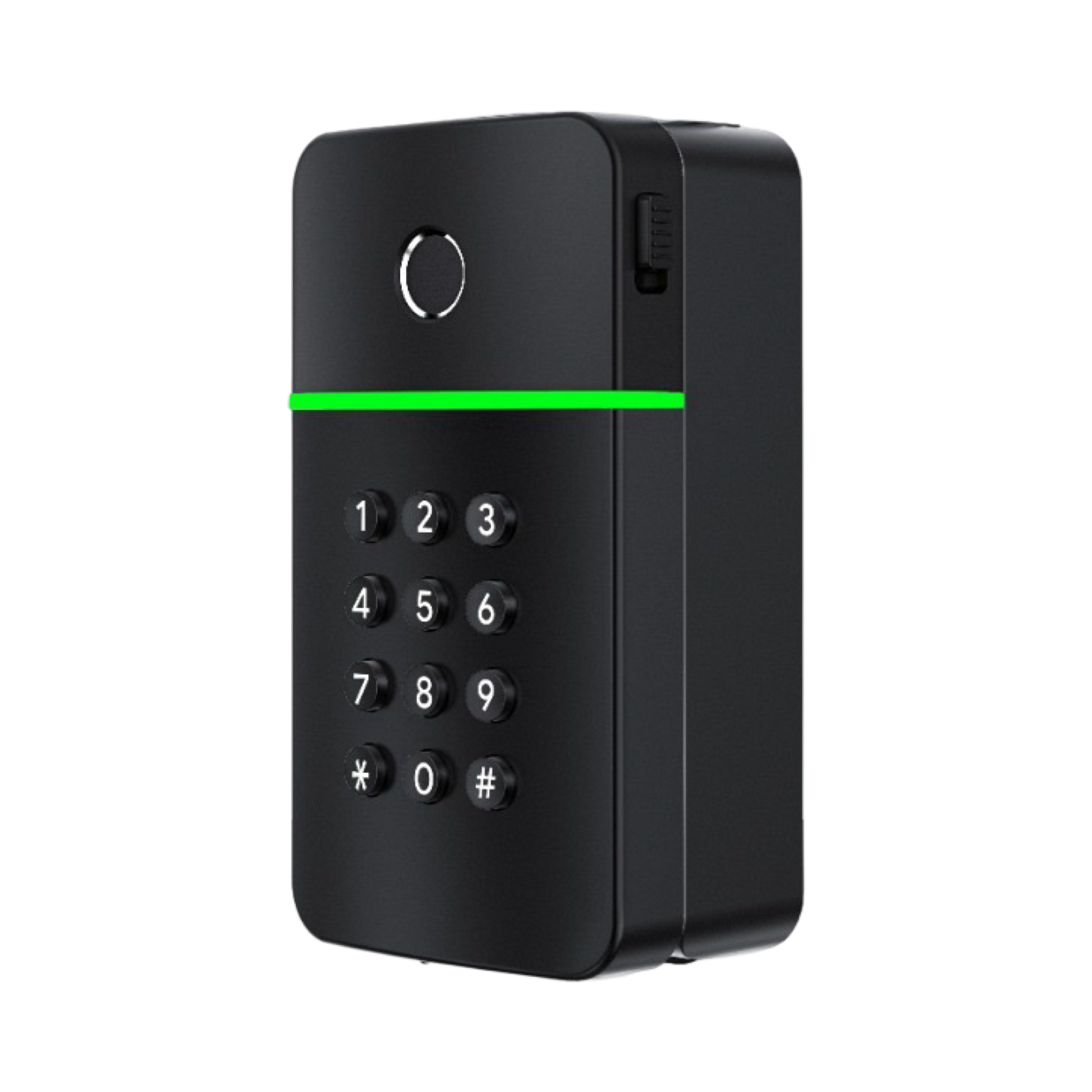

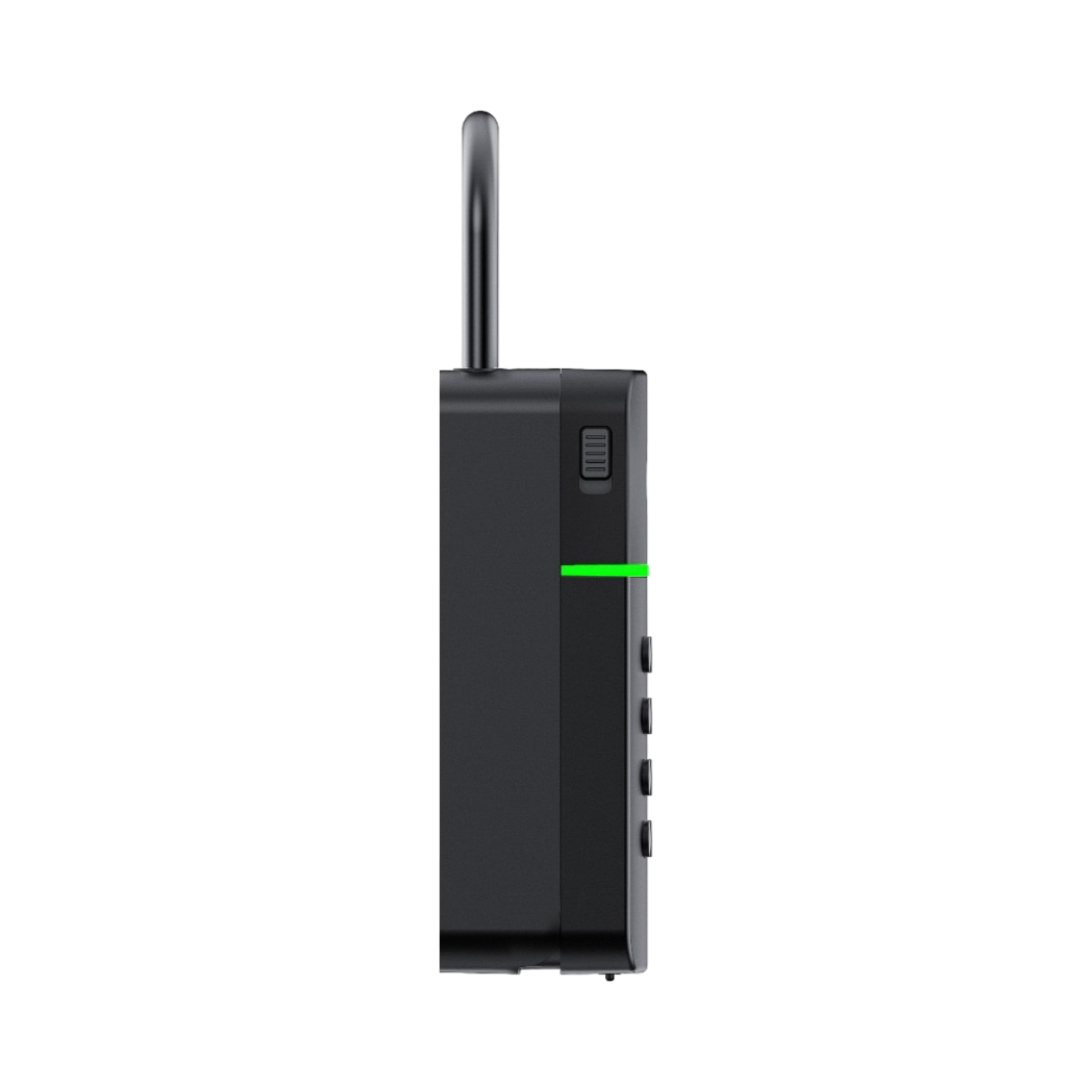

QSmart Key Vault

QSmart Key Vault

Key Features

• 6-in-1 Smart Access
Unlock via Fingerprint, PIN Code, RFID Card, Bluetooth (TTLock App), Wi-Fi (with Gateway), or Mechanical Key.
• TTLock App Integration
Full control from your smartphone – add users, send time-limited eKeys, view access logs, and enable passage mode.
• High User Capacity
Store up to 200 fingerprints, 150 PIN codes, and 200 RFID cards – ideal for homes, rentals, offices, and shared access situations.
• Secure & Durable Build
Made from premium aluminium alloy with a toughened glass keypad and protective weather cover.
• Multiple Installation Options

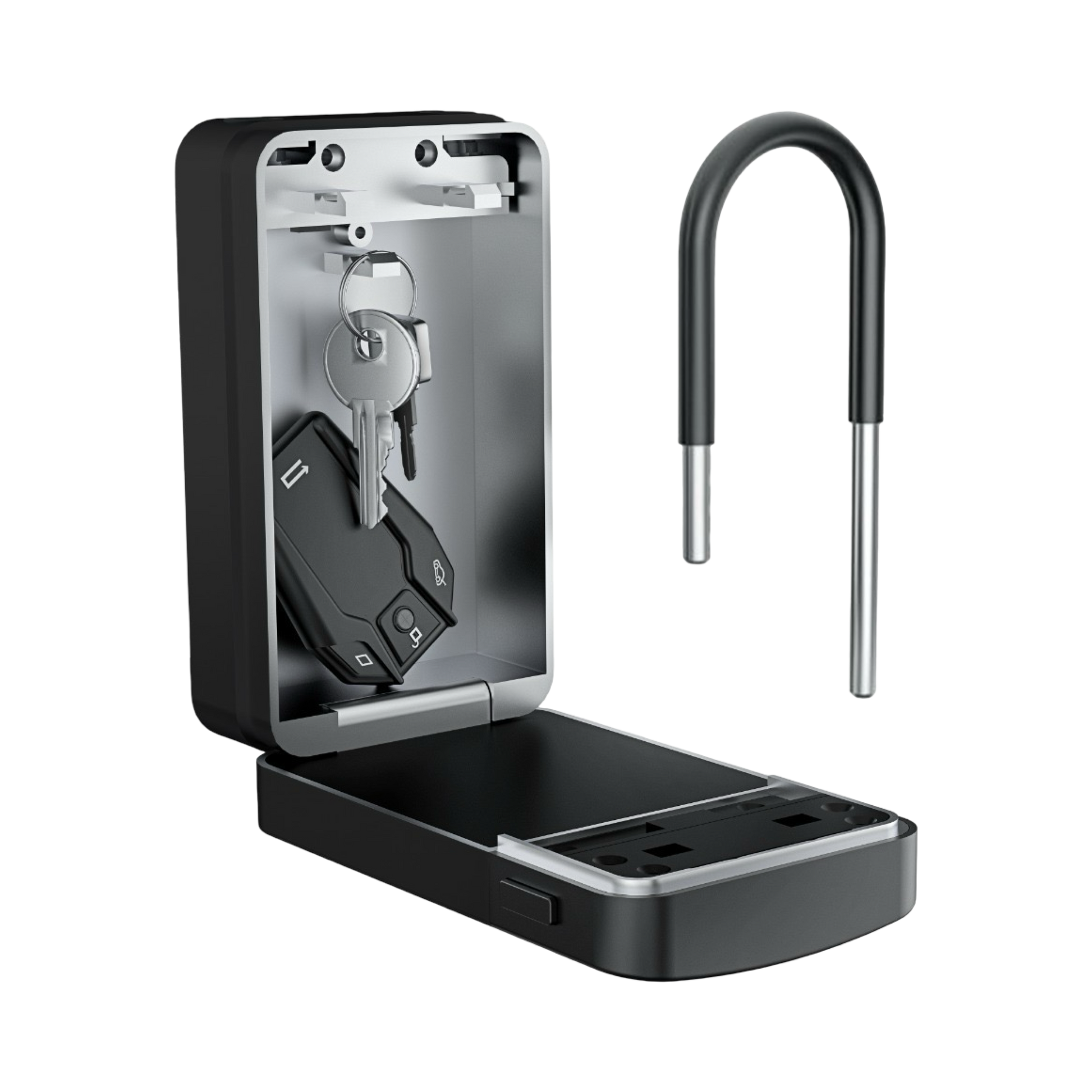

Wall-mount or use the included shackle to hang the lockbox on gates, fences, or door handles.
• Anti-Peep PIN Technology
Protect your access codes by entering random digits before or after your real PIN.
• Tamper & Incorrect Attempt Protection
Lock temporarily disables after multiple failed attempts; reset button can be disabled in the app for added security.
• Real-Time Access Logs
Track exactly who accessed the box and when, directly in the TTLock app.
• Power & Emergency Access
12-month battery life with low battery alerts and USB-C emergency power input; mechanical key override included.
• Weather-Resistant Design
Built to withstand outdoor conditions with an operating range of -25°C to 60°C and up to 95% humidity.

User Guide & Installation Video


Technical Specifications

Material:

  • High-strength Aluminium Alloy
  • Tempered glass keypad with weather-resistant cover

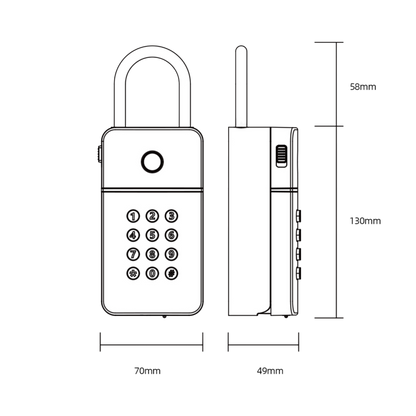

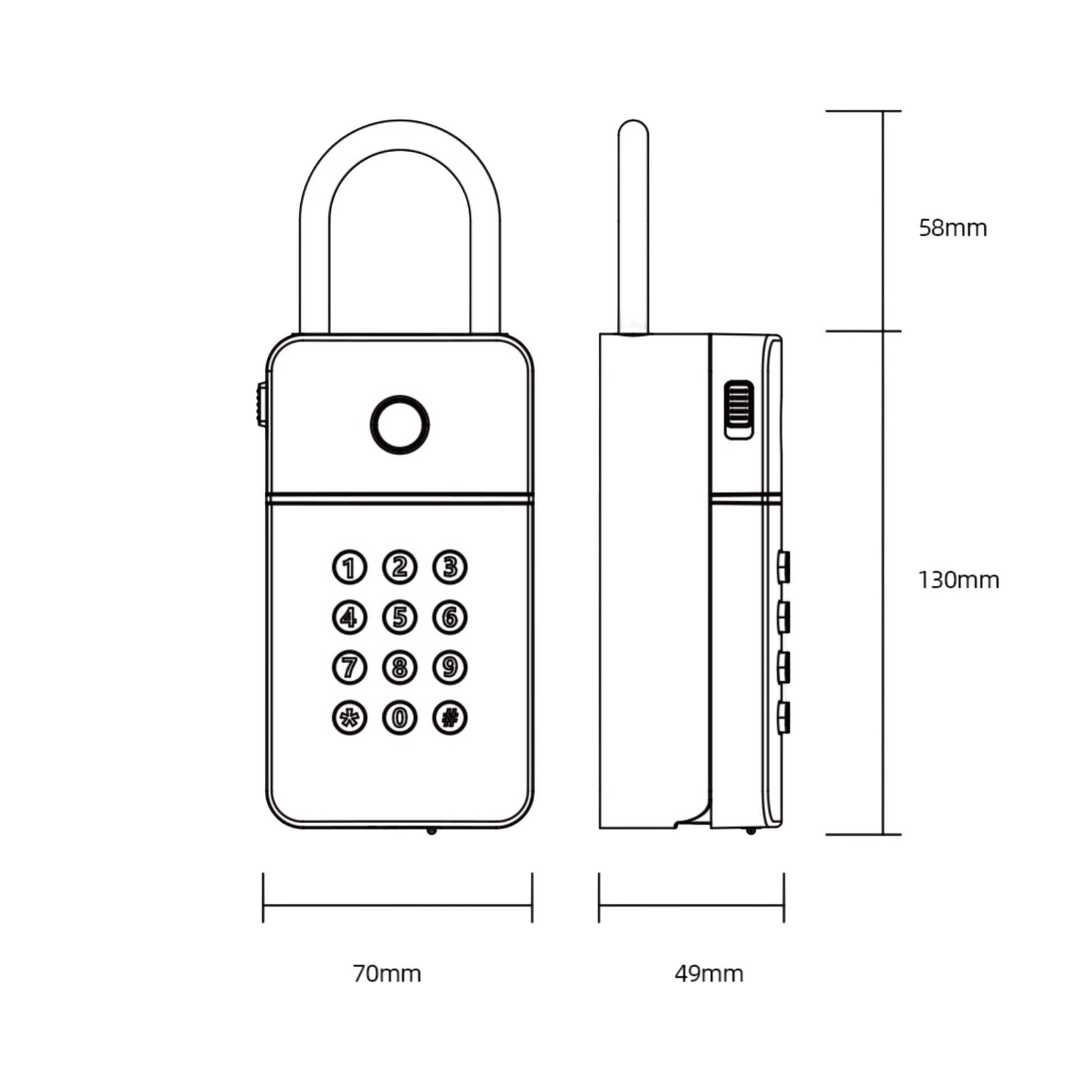

Dimensions:

  • 130mm (H) × 70mm (W) × 49mm (T)


Power Supply:

  • 4 × AAA Alkaline Batteries (6V)
  • Battery Life: Up to 12 months (typical use)
  • Low Battery Alerts: Via app and audible warning
  • Emergency Power: USB-C port for temporary backup


Operating Conditions:

  • Temperature: -25°C to 60°C
  • Humidity: 0% to 95% RH (non-condensing)


Door Compatibility:

  • Fits surfaces or handles up to 35–60mm thick (when used with shackle)
  • Wall-mount and shackle installation options included


User Capacity:

  • Fingerprint: Up to 200 users
  • PIN Codes: Up to 150
  • RFID Cards: Up to 200


Unlocking Methods:

  • Fingerprint
  • PIN Code
  • RFID Card
  • Bluetooth (via TTLock App)
  • Wi-Fi (with optional Q-Smart Gateway)
  • Mechanical Key
  • Keyless Fob


Connectivity:

  • Bluetooth: TTLock BLE Protocol
  • Wi-Fi (Optional): TTLock Wi-Fi/BLE via Gateway
  • App Compatibility: TTLock App (iOS & Android)


Applications:

  • Residential homes
  • Airbnb & short-stay rentals
  • Offices & meeting rooms
  • Apartments, condos & real estate management
  • Tradie access & secure shared key storage

View full details

The Q-Smart Key Vault Box is a sleek, high-security digital key safe designed to give you total control over spare key and access card management. Whether for your home, office, short-stay rental, or business premises, this advanced 5-in-1 smart key box offers versatile access and unmatched convenience.

  • Fingerprint Access

  • App

  • RFID

  • Keypad

  • Wifi

  • Key Overide

1 of 6
  • Weather & Waterproof Protection (IP65 Rated)

    IP65-rated for outdoor use — fully dust-tight and protected against rain and low-pressure water jets. Reliable performance in all weather conditions.
